A1222 Plus is a Power architecture motherboard based around the QorIQ P1022 CPU.

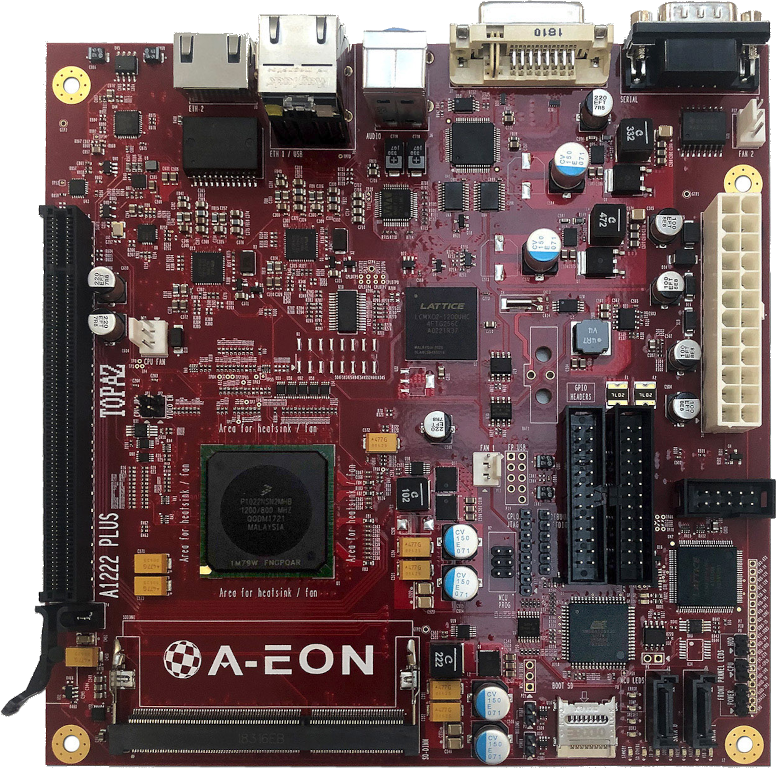

A1222 plus motherboard - front
A1222 plus motherboard - front

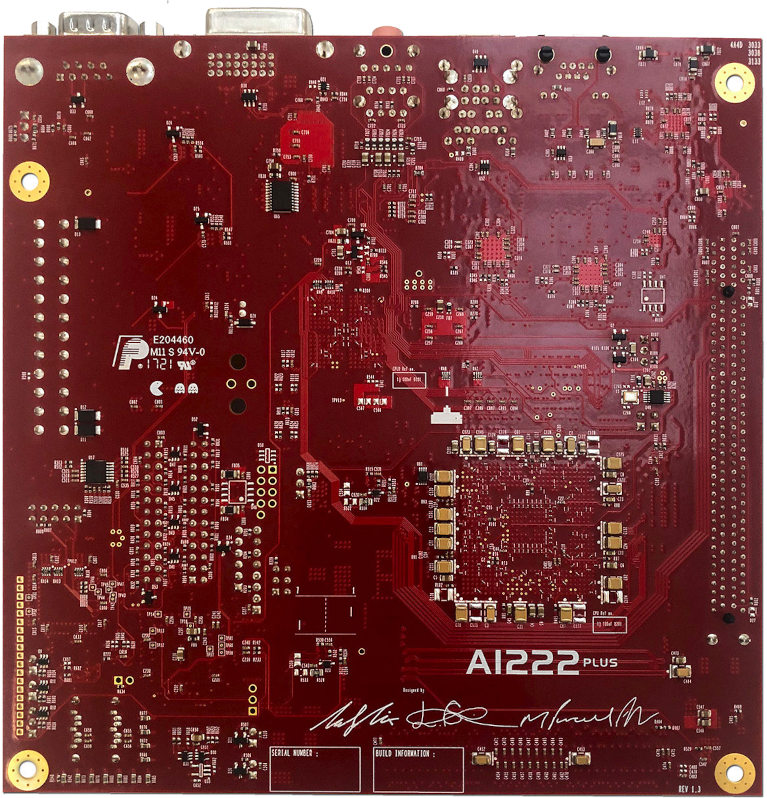

A1222 plus motherboard - back
A1222 plus motherboard - back

Specifications:

  • PowerPC CPU: NXP QorIQ P1022, 1.2GHz, 32-bit, e500V2, dual-core
  • Ram: DDR3 SODIMM, 64 bit interface, 400Mhz, Support up to 8GB RAM
  • RS232 Serial including flow control, Level shifting from TTL UART serial levels to RS232 levels, Maximum baud rate of 230,400
  • 2x SATA 2.6 compliant controllers
  • 2x External & 2x Internal USB ports
  • 2x RGMII ethernet PHYs each providing Gbit ethernet
  • x4 PCIe gen 1 link allows data rates of 2.5Gb/s per lane
  • x16 PCIe compatible connector to support Radeon RX graphics cards
  • Audio CODEC generating stereo audio out from I2S digital audio
  • DVI LCD Interface, 24 bit colour depth, support for resolution up to 1280x1024 (no 3D, no 2D acceleration), HDMI 1.3 support
  • Support for user GPIOs, GPIO JTAG
  • Micro SD card for ROM
  • WCU Prog
  • LED ports for Power, CPU, HDD
